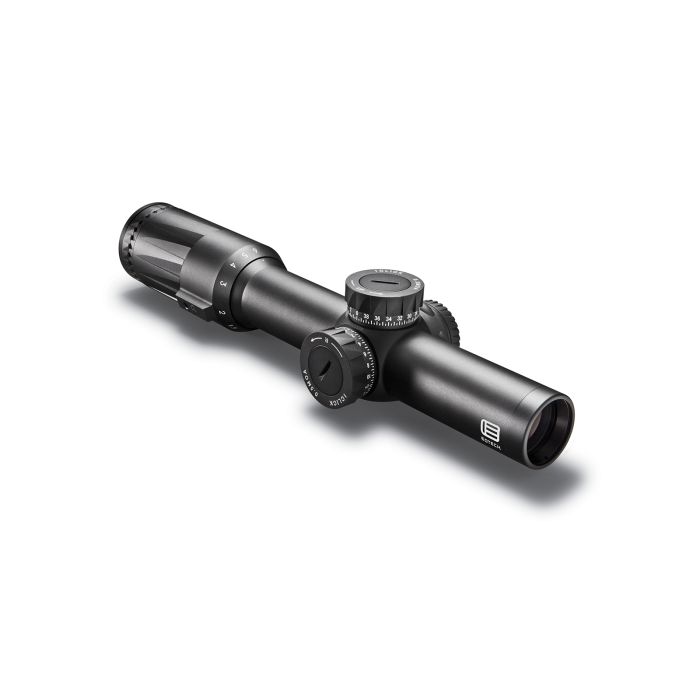

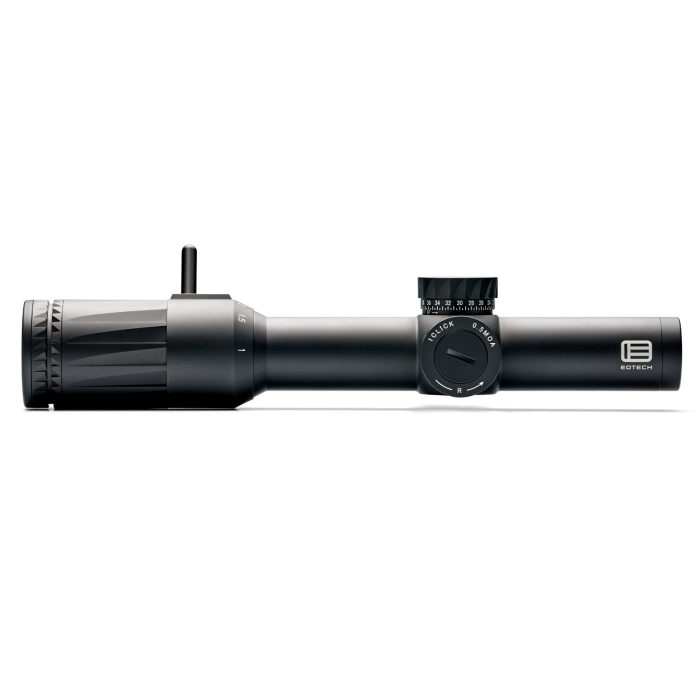

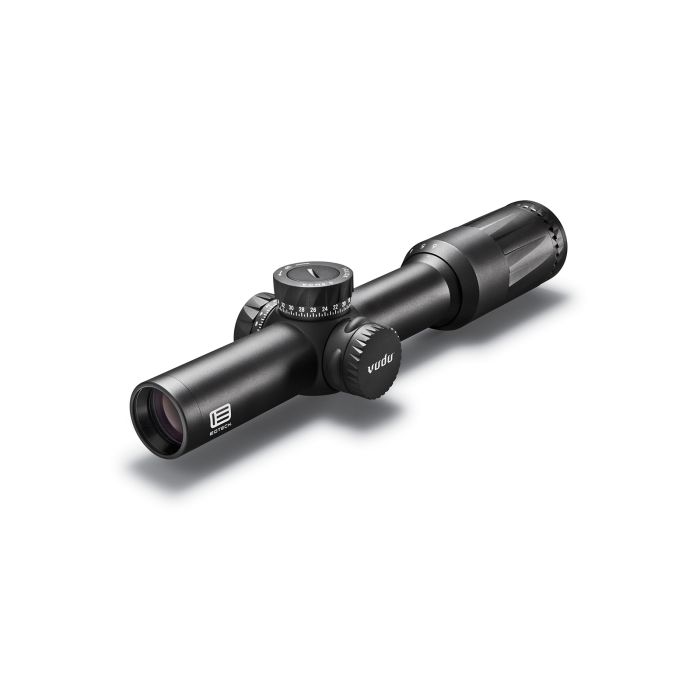

Eotech VUDU 1-6x24MM Scope
$1,329.00
$1,399.00
In stock
Specs
- Brand
- EOTech
- Category
- Optics & Sights
- Reticle
- SR-1 MRAD, SR-2 7.62 BDC-MOA, SR-3 5.56 BDC-MOA
- Color
- Red Illumination, Green Illumination
- Item no.
- EOVUDU1-6FFPSR1
- Shipping weight
- 1.26 lb
Details
Eotech VUDU 1-6x24MM Scope
SPEED TO TARGET AND HAIR-SPLITTING PRECISION IN PERFECT HARMONY.
Technical Specifications
Overview
This is an optic that feels at home on the AR platform or on a bolt action rifle. The EOTECH Speed Ring reticle allows for fast target engagement at low power, but at higher power provides the resolution and accuracy required to tackle longer shots. The Vudu 1-6X is the perfect solution for short- to medium-range applications.
Included in the box:
- Vudu® 1-6X24 Rifle Scope
- Operator Manual
- Reticle Manual
- Throw Lever
- Lens Cleaning Cloth
- Battery
First Focal Plane
Overall Length
10.63" (270 mm)
Weight
20.1 oz (570 g)
Magnification
1-6X
Tube Diameter
30 mm
Objective Diameter
24 mm
Power Source
CR2032
Eye Relief
1X: 3.27-3.94" (83-100 mm)
6X: 3.23-3.94" (82-100 mm)
Field-of-View @ 100 Yards
1X: 102.4 ft (31.2 m)
6X: 16.7 ft (5.09 m)
Country of Origin
Made in Japan
Features
Aircraft Grade
Aircraft-grade aluminum, single-piece construction with anodized finish for extreme durability. Laser-etched adjustment indicators and push-button illumination controls for tracking east. Water-resistant, fog-resistant, shock-resistant with single construction eyepiece.
Fog Resistant
Nitrogen gas purging prevents internal fogging over the operating temperature range.
Shock Resistant
The rugged design prevents damage from heavy recoil and rough handling.
Water Resistant
The single-piece tube and o-ring seals prevents moisture and dust from entering the scope even in the harshest environments.
Anti-Reflective Lenses
XC™ high-density, low dispersion glass with anti reflective coated lenses provides efficient light transmission and unmatched edge-to-edge clarity. Water-resistant, fog-resistant, shock-resistant with single construction eyepiece.
Reticle Specifications
Vudu SR1 Reticle
The SR1 incorporates the iconic EOTECH illuminated speed ring along with a hashmarked inner crosshair reticle that uses MRAD sub-tension lines for ranging, holdover and wind compensation. The first focal plane design allows for lightning fast target acquisition using the speed ring at the lower power settings. When the magnification setting is dialed up, the speed ring disappears from view and the inner crosshair comes in to view for more precision on longer range shots.
Adjustment Graduation Per Click
0.2 MRAD
Adjustment Graduation Per Rotation
15 MRAD
Total Elevation Travel
29 MRAD
Total Windage Travel
23 MRAD
Vudu SR2 Reticle
The SR2 incorporates the iconic EOTECH illuminated speed ring along with a BDC inner reticle calibrated for the 7.62 mm (M118LR) out to 600 yards. The first focal plane design allows for lightning fast target acquisition using the speed ring at the lower power settings. When the magnification setting is dialed up, the speed ring disappears from view and the inner BDC comes into view for more precision on longer-range shots.
Vudu SR3 Reticle
The SR3 incorporates the iconic EOTECH illuminated speed ring along with a BDC inner reticle calibrated for the 5.56 mm (75gr. BTHP) out to 600 yards. The first focal plane design allows for lightning fast target acquisition using the speed ring at the lower power settings. When the magnification setting is dialed up, the speed ring disappears from view and the inner BDC comes into view for more precision on longer-range shots.
